Click on the infographic above for help deciding which of our fixed frequency dot arrays is appropriate for your application.

If you don't see what you need, please contact us to request a custom quote here!

Part Number Item Description Price
DA020 Target Grid Distortion Glass Target Grid Distortion Glass $301.50 VIEW
DA021 Target Grid Distortion Film Target Grid Distortion Film $269.00 VIEW

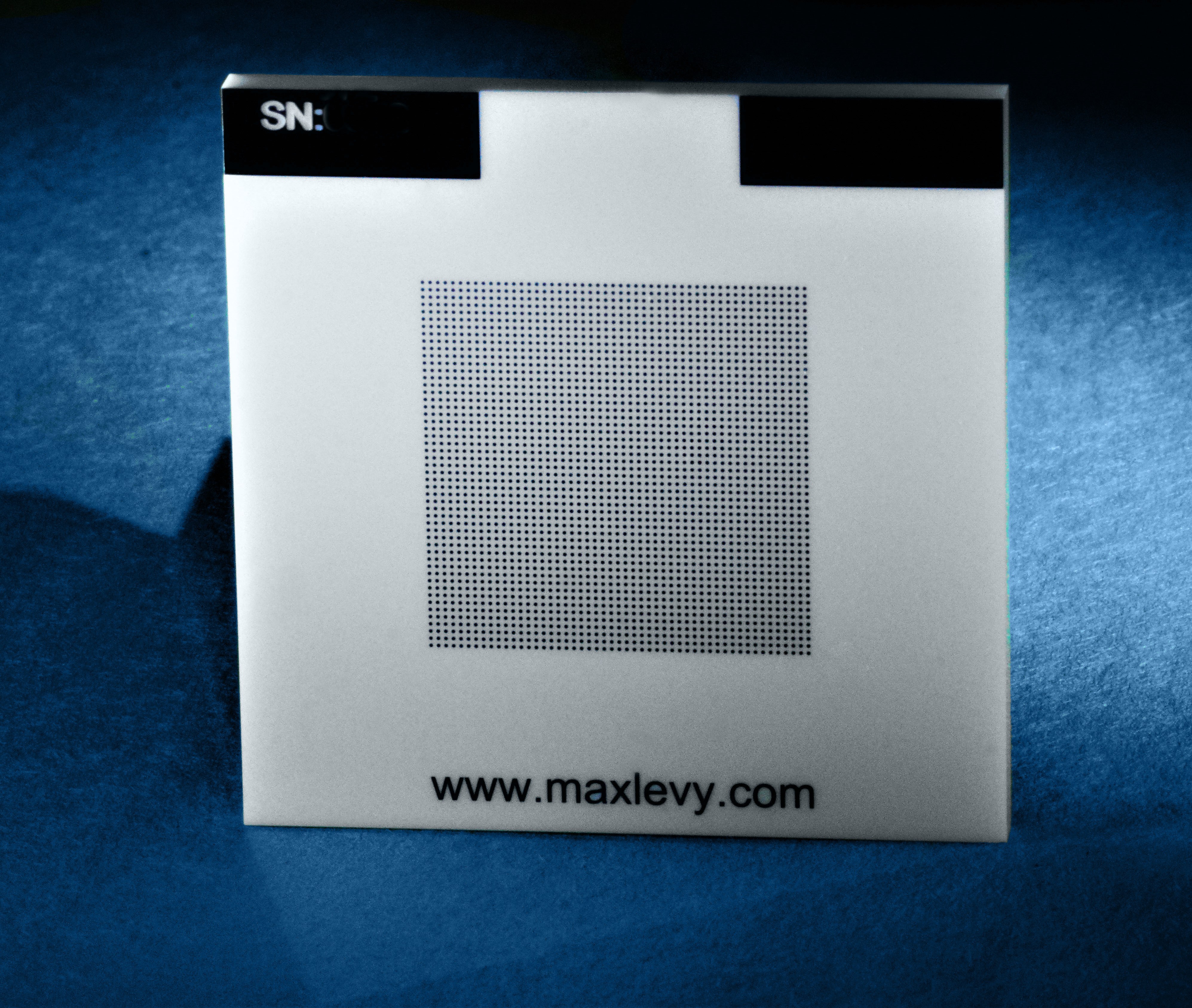

DA073 Target Grid Distortion Glass On White Ivory Target Grid Distortion Glass On White Ivory $395.00 VIEW
DA042 Target Dot Grid Assembly Target Dot Grid Assembly $800.00 VIEW
FA079 Dot Array 25mm X 25mm, .0625mm Dots on .125mm Centers, Clear Glass Dot Array 25mm X 25mm, .0625mm Dots on .125mm Centers, Clear Glass $301.50 VIEW
FA115 Dot Array 25mm x 25mm, .125mm Dots on .25mm Centers, Clear Glass Dot Array 25mm x 25mm, .125mm Dots on .25mm Centers, Clear Glass $225.00 VIEW
FA107 Dot Array 25mm x 25mm, .25mm Dots on .50mm Centers, Clear Glass Dot Array 25mm x 25mm, .25mm Dots on .50mm Centers, Clear Glass $220.50 VIEW
FA123 Dot Array 25mm x 25mm, .25mm Dots on 1.0mm Centers, Clear Glass Dot Array 25mm x 25mm, .25mm Dots on 1.0mm Centers, Clear Glass $220.50 VIEW
FA083 Dot Array 50mm x 50mm, .125mm Dots on .25mm Centers, Clear Glass Dot Array 50mm x 50mm, .125mm Dots on .25mm Centers, Clear Glass $296.00 VIEW
FA119 Dot Array 50mm x 50mm, 0.25mm Dots on 0.50mm Centers, Clear Glass Dot Array 50mm x 50mm, 0.25mm Dots on 0.50mm Centers, Clear Glass $288.00 VIEW
FA127 Dot Array 50mm x 50mm, .25mm Dots on 1.0mm Centers, Clear Glass Dot Array 50mm x 50mm, .25mm Dots on 1.0mm Centers, Clear Glass $288.00 VIEW
FA111 Dot Array 50mm x 50mm, .50mm Dots on 1.0mm Centers, Clear Glass Dot Array 50mm x 50mm, .50mm Dots on 1.0mm Centers, Clear Glass $279.00 VIEW
FA087 Dot Array 100mm x 100mm, .25mm Dots on .50mm Centers, Clear Glass Dot Array 100mm x 100mm, .25mm Dots on .50mm Centers, Clear Glass $616.50 VIEW
FA131 Dot Array 100mm x 100mm, .25mm Dots on 1.0mm Centers, Clear Glass Dot Array 100mm x 100mm, .25mm Dots on 1.0mm Centers, Clear Glass $616.50 VIEW
FA091 Dot Array 100mm x 100mm, .50mm Dots on 1.0mm Centers, Clear Glass Dot Array 100mm x 100mm, .50mm Dots on 1.0mm Centers, Clear Glass $566.00 VIEW
FA095 Dot Array 100mm x 100mm, 1.0mm Dots on 2.0mm Centers, Clear Glass Dot Array 100mm x 100mm, 1.0mm Dots on 2.0mm Centers, Clear Glass $558.00 VIEW
FA099 Dot Array 150mm x 150mm, .50mm Dots on 1.0mm Centers, Clear Glass Dot Array 150mm x 150mm, .50mm Dots on 1.0mm Centers, Clear Glass $1,078.00 VIEW
FA103 Dot Array 150mm x 150mm, 1.0mm Dots on 2.0mm Centers, Clear Glass Dot Array 150mm x 150mm, 1.0mm Dots on 2.0mm Centers, Clear Glass $972.00 VIEW
FA135 Dot Array 25mm X 25mm, 0.0625mm Dots on 0.125mm Centers,White Ivory Dot Array 25mm X 25mm, 0.0625mm Dots on 0.125mm Centers,White Ivory $418.50 VIEW
FA143 Dot Array 25mm x 25mm, .125mm Dots on .25mm Centers, White Ivory Dot Array 25mm x 25mm, .125mm Dots on .25mm Centers, White Ivory $315.00 VIEW
FA145 Dot Array 25mm x 25mm, .25mm Dots on 1.0mm Centers, White Ivory Dot Array 25mm x 25mm, .25mm Dots on 1.0mm Centers, White Ivory $308.70 VIEW
FA147 Dot Array 50mm x 50mm, .125mm Dots on .25mm Centers, White Ivory Dot Array 50mm x 50mm, .125mm Dots on .25mm Centers, White Ivory $414.40 VIEW
FA149 Dot Array 50mm x 50mm, 0.25mm Dots on 0.50mm Centers, White Ivory Dot Array 50mm x 50mm, 0.25mm Dots on 0.50mm Centers, White Ivory $403.20 VIEW
FA151 Dot Array 50mm x 50mm, .25mm Dots on 1.0mm Centers, White Ivory Dot Array 50mm x 50mm, .25mm Dots on 1.0mm Centers, White Ivory $403.20 VIEW
FA139 Dot Array 25mm x 25mm, .25mm Dots on .50mm Centers, White Ivory Dot Array 25mm x 25mm, .25mm Dots on .50mm Centers, White Ivory $328.00 VIEW
FA141 Dot Array 50mm x 50mm, .50mm Dots on 1.0mm Centers, White Ivory Dot Array 50mm x 50mm, .50mm Dots on 1.0mm Centers, White Ivory $377.00 VIEW
FA153 Dot Array 100mm x 100mm, .25mm Dots on .50mm Centers, White Ivory Dot Array 100mm x 100mm, .25mm Dots on .50mm Centers, White Ivory $863.10 VIEW
FA155 Dot Array 100mm x 100mm, .25mm Dots on 1.0mm Centers, White Ivory Dot Array 100mm x 100mm, .25mm Dots on 1.0mm Centers, White Ivory $863.10 VIEW
FA157 Dot Array 100mm x 100mm, .50mm Dots on 1.0mm Centers, White Ivory Dot Array 100mm x 100mm, .50mm Dots on 1.0mm Centers, White Ivory $792.40 VIEW
FA137 Dot Array 100mm x 100mm, 1.0mm Dots on 2.0mm Centers, White Ivory Dot Array 100mm x 100mm, 1.0mm Dots on 2.0mm Centers, White Ivory $800.00 VIEW
FA159 Dot Array 150mm x 150mm, .50mm Dots on 1.0mm Centers, White Ivory Dot Array 150mm x 150mm, .50mm Dots on 1.0mm Centers, White Ivory $1,509.20 VIEW
FA161 Dot Array 150mm x 150mm, 1.0mm Dots on 2.0mm Centers, White Ivory Dot Array 150mm x 150mm, 1.0mm Dots on 2.0mm Centers, White Ivory $1,360.80 VIEW
FA081 Dot Array 25mm x 25mm, .0625mm Dots on .125mm Centers, Mylar Dot Array 25mm x 25mm, .0625mm Dots on .125mm Centers, Mylar $250.00 VIEW
FA117 Dot Array 25mm x 25mm, .125mm Dots on .25mm Centers, Mylar Dot Array 25mm x 25mm, .125mm Dots on .25mm Centers, Mylar $245.00 VIEW
FA109 Dot Array 25mm x 25mm, .25mm Dots on .50mm Centers, Mylar Dot Array 25mm x 25mm, .25mm Dots on .50mm Centers, Mylar $235.00 VIEW
FA125 Dot Array 25mm x 25mm, .25mm Dots on 1.0mm Centers, Mylar Dot Array 25mm x 25mm, .25mm Dots on 1.0mm Centers, Mylar $220.00 VIEW
FA085 Dot Array 50mm x 50mm, .125mm Dots on .25mm Centers, Mylar Dot Array 50mm x 50mm, .125mm Dots on .25mm Centers, Mylar $358.00 VIEW
FA121 Dot Array 50mm x 50mm, .25mm Dots on .50mm Centers, Mylar Dot Array 50mm x 50mm, .25mm Dots on .50mm Centers, Mylar $347.00 VIEW
FA129 Dot Array 50mm x 50mm, .25mm Dots on 1.0mm Centers, Mylar Dot Array 50mm x 50mm, .25mm Dots on 1.0mm Centers, Mylar $335.00 VIEW
FA113 Dot Array 50mm x 50mm, .50mm Dots on 1.0mm Centers, Mylar Dot Array 50mm x 50mm, .50mm Dots on 1.0mm Centers, Mylar $325.00 VIEW
FA089 Dot Array 100mm x 100mm, .25mm Dots on .50mm Centers, Mylar Dot Array 100mm x 100mm, .25mm Dots on .50mm Centers, Mylar $750.00 VIEW
FA133 Dot Array 100mm x 100mm, .25mm Dots on 1.0mm Centers, Mylar Dot Array 100mm x 100mm, .25mm Dots on 1.0mm Centers, Mylar $739.00 VIEW
FA093 Dot Array 100mm x 100mm, .50mm Dots on 1.0mm Centers, Mylar Dot Array 100mm x 100mm, .50mm Dots on 1.0mm Centers, Mylar $727.00 VIEW
FA097 Dot Array 100mm x 100mm, 1.0mm Dots on 2.0mm Centers, Mylar Dot Array 100mm x 100mm, 1.0mm Dots on 2.0mm Centers, Mylar $718.00 VIEW
FA101 Dot Array 150mm x 150mm, .50mm Dots on 1.0mm Centers, Mylar Dot Array 150mm x 150mm, .50mm Dots on 1.0mm Centers, Mylar $1,024.00 VIEW
FA105 Dot Array 150mm x 150mm, 1.0mm Dots on 2.0mm Centers, Mylar Dot Array 150mm x 150mm, 1.0mm Dots on 2.0mm Centers, Mylar $896.00 VIEW
