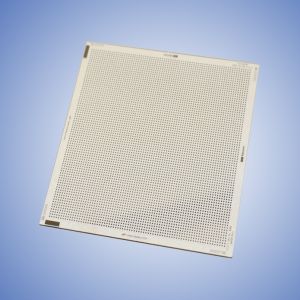

Dot Array 25mm x 25mm, .25mm Dots on 1.0mm Centers, Mylar
Close Dot Array 25mm x 25mm, .25mm Dots on 1.0mm Centers, Mylar

Dot Array 25mm x 25mm, .25mm Dots on 1.0mm Centers, Mylar

Stock No. FA125

Call for pricing.
(800)798-3675

About This Product

  These precision Mylar Distortion Targets allow for the testing and qualification of machine vision systems. The pattern is formed in film emulsion on a .007” Mylar substrate. The pattern is positive (black dots on a diffuse white background). Targets are available in four different patterns and three substrate sizes to match the requirements of your application. These film targets have a feature-to-feature accuracy of .005mm. All targets are NIST traceable and individually serialized for compliance to MIL-STD-45662A. For higher accuracy, please see the Chrome-on-Glass version of this target.

  • Dot diameter: .25mm
  • Dot spacing: .5mm
  • Overall Accuracy: ±0.05mm
  • Substrate type: film on white mylar
  • Substrate size: 2” x 2”


   Please see the drawing below for complete specifications.

Specifications

Product Drawing.pdf
